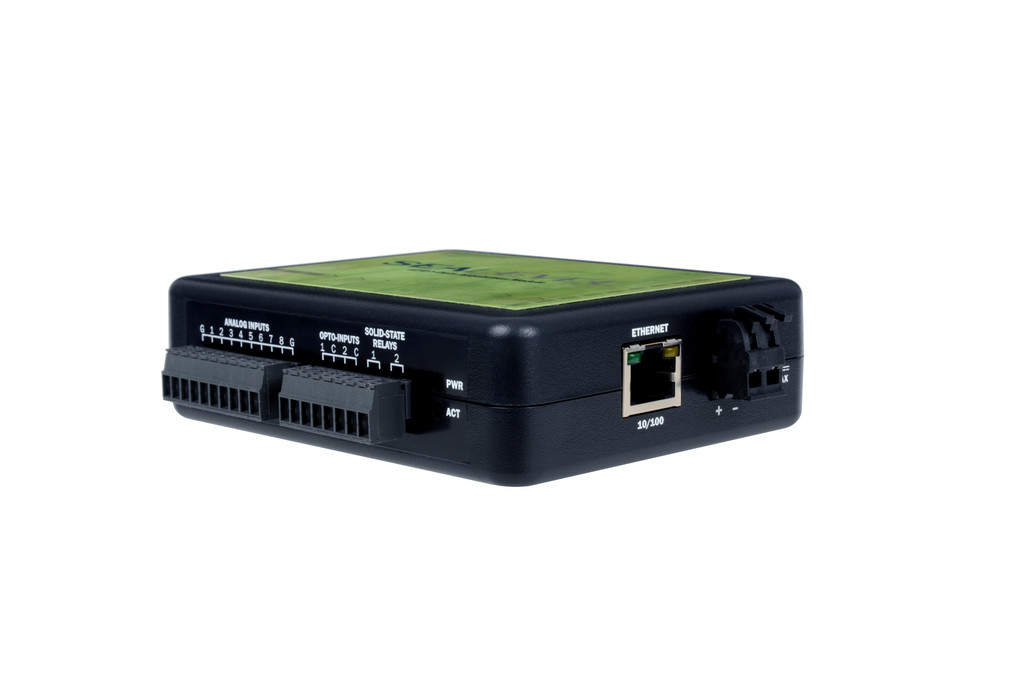

Sealevel 170OE-ROHS Multifunction I/O Module

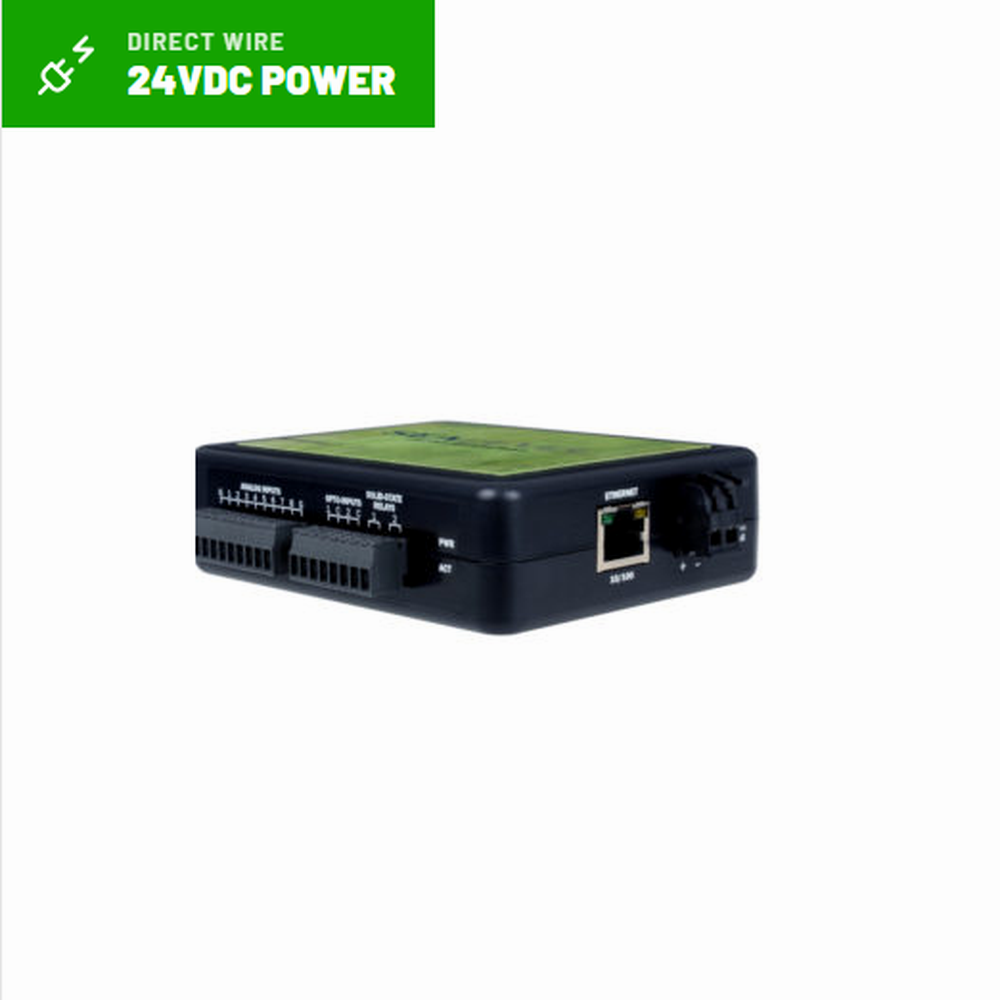

Powered by machine power supply. Includes:
Ethernet Patch Cable
RJ45 Panel Coupler
2 leads with built-in dropdown resistor (connect 24VDC signals directly to device)
8 analog inputs (12-bit), ranges: 0–5V, 0–10V, ±5V, ±10V
2 optically isolated digital inputs (dry contact)
2 solid-state relay outputs (60VDC @ 2.5A)
Modbus TCP communication
DIN-rail or surface mountable
Operating temperature: 0°C to +70°C
